Applications :

• The cables are designed for connection between traffi c control centers and equipment shelters along the trackside. The cables are specially designed to give good induction protection (R.F= 0.26 at inductive voltage 100V/km) and are suitable for installation in intercity railways electrifi ed at 25KV ac.

Standards :

• SNCF CT 445/SNCT ST 698G
• NF F 55-698

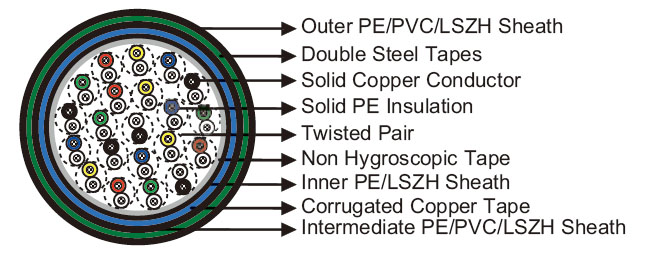

Construction :

• Conductors : Solid annealed copper, 1.0/1.5 mm sq nominal cross section area.
• Insulation : Solid polyethylene.
• Cabling Element : Each two conductors are twisted together to form a pair.
• Stranding : Pairs are helically stranded in layers to form the cable core.
• Core Wrapping : Plastic tape(s) with overlapping.
• Inner Sheath : PE sheath. LSZH FR option can be offered upon request to NF C 32 070.2.2 (C1).
• Electrostatic Shield : One corrugated copper tape.
• Intermediate Sheath : PE/PVC sheath. LSZH FR option can be offered upon request to NF C 32 070.2.2 (C1).
• Electromagnetic Shield : Two helically applied steel tapes of 0.5mm.
• Outer Sheath : PE/PVC compound. LSZH FR option can be offered upon request to NF C 32 070.2.2 (C1).
• Remarks : ZPAU: PE/PVC Sheath; ZPAU-SH: LSZH Sheath.

Electrical Characteristics at 20 °C :

• Nominal Conductor Diameter	mm	1.13	1.38
  Nominal Cross Section Area	mm2	1.0	1.5
  Maximum Conductor Resistance (DC)	Ω/km	18.1	12.31
  Minimum Insulation Resistance @500 V DC (3mins)	MΩ.km	5000	5000
  Maximum Mutual Capacitance @1000Hz (AC)	nF/km	55	55
  Maximum Capacitance Unbalance (pair to pair) @800Hz
  100% cases	pF/500 m	400	400
  90% cases	pF/500 m	200	200
  Attenuation @45KHz	dB/km	2.5	2.5
  Characteristic Impedance @45KHz	Ω	120	120
  Dielectric Strength, conductor to conductor (DC voltage 3secs)	V	4500	4500
  Operating Voltage (AC/DC)	V	450/750	450/750
  Peak Value (AC)	V	900	900

Mechanical and Thermal Properties :

• Minimum Bending Radius : 8xOD (static); 16xOD (dynamic).
• Temperature Range : -40°C to +70°C (during operation); -20°C +50°C (during installation).

Reduction Factor :

• Inductive Voltage (V/km) Em	28	32	37	42	47	50	70	80	100	120	170	225
  Reduction Factor @50Hz Rk	0.75	0.70	0.60	0.50	0.40	0.35	0.30	0.28	0.26	0.25	0.24	0.25

Dimensions and Weight :



Cable Code	No. of Pairs	Nominal Sheath Thickness mm			Nominal Overall Diameter mm	Nominal Weight kg/km
		Inner	Interm.	Outer
1.13mm Conductor, 2.3mm Insulated Wire
RS/ZPAU-2Y2Y(K)2YB2Y-1P1S	1	1.0	0.8	1.6	16.2	490
RS/ZPAU-2Y2Y(K)2YB2Y-2P1S	2	1.0	0.8	1.6	17.0	550
RS/ZPAU-2Y2Y(K)2YB2Y-3P1S	3	1.0	0.8	1.6	22.2	820
RS/ZPAU-2Y2Y(K)2YB2Y-4P1S	4	1.0	0.8	1.6	23.8	890
RS/ZPAU-2Y2Y(K)2YB2Y-7P1S	7	1.0	0.8	1.7	26.7	1080
RS/ZPAU-2Y2Y(K)2YB2Y-14P1S	14	1.2	0.8	1.8	32.3	1560
RS/ZPAU-2Y2Y(K)2YB2Y-21P1S	21	1.2	1.1	2.0	37.2	1990
RS/ZPAU-2Y2Y(K)2YB2Y-28P1S	28	1.2	1.1	2.2	41.4	2380
RS/ZPAU-2Y2Y(K)2YB2Y-56P1S	56	1.3	1.3	2.5	52.9	3700
1.38mm Conductor, 2.55mm Insulated Wire
RS/ZPAU-2Y2Y(K)2YB2Y-14P1.5S	14	1.2	0.8	1.8	35.0	2050
RS/ZPAU-2Y2Y(K)2YB2Y-21P1.5S	21	1.2	1.1	2.0	39.5	2525





UV Resistant	Anti Induction	Mineral Oil Resistant		Rated voltage	Buried in Ciround	Laid In Ducts





PE Sheath

Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1

PVC Sheath

Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1





LSZH Sheath

Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 Low Toxicity         Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073 Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
